Plug Gauges for Manufacturing of Threaded Components: Ensuring Thread Precision

Plug Gauges for Manufacturing of Threaded Components are highly necessary in precision engineering where internal threads have to be made per specifications. The tiniest thread bends may lead to problems of assembly, leakage, or early breakdown. Plug gauges are a fast and accurate method of testing internal thread, to make sure that each part is fitted correctly and performs flawlessly. Systemgauges & Tools India Pvt. Ltd supports manufacturers with reliable Plug Gauges for Manufacturing of Threaded Components in India, helping maintain quality, reduce scrap, and improve efficiency by verifying tolerance compliance at early production stages.

What Are Plug Gauges?

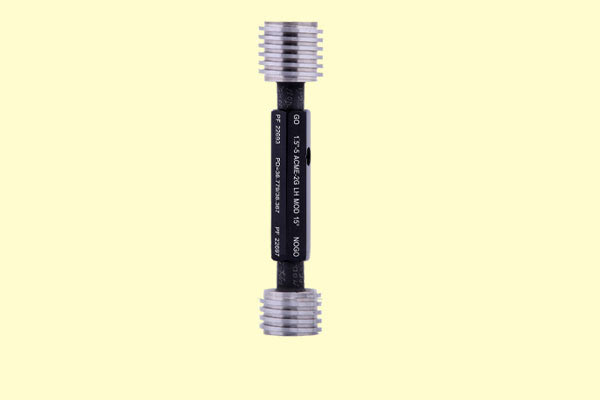

Plug gauges are fixed-limit gauges that are used to check the inside dimensions of threaded and non-threaded openings. Thread plug gauges are widely used in checking thread accuracy in the thread manufacturing of internal thread products like nuts, tapped holes and threaded housings. These gauges work on Go / No-Go principle, which is a fast and effective way of checking whether a part can be used according to design requirements.

In contrast to measuring instruments, plug gauges do not give any numerical values, but a pass-fail test, which is why they are best used in high-volume manufacturing.

Importance of Plug Gauges in Threaded Component Manufacturing

The threaded components production requires the consistency, accuracy and the adherence to the international standards. Plug gauges assist the manufacturers to meet these objectives by:

• Ensuring correct thread size and pitch
• Ensuring that it is assembled functionally
• Avoiding scrap and rework that is expensive
• Ensuring the quality of production batches

By incorporating Plug Gauges for Manufacturing of Threaded Components in India into inspection processes, the manufacturer is able to identify deviations at an early stage and exert a strong control over the quality of the thread.

Material and Design Features of Plug Gauges for Manufacturing of Threaded Components

The modern plug gauge is produced with high quality alloy steel or tungsten carbide, which is very durable and stable in dimensions. Key features include:

• Long service life with great wear resistance.
• Accurate inspection with precision-ground threads.
• Anti-corrosive finishes to extreme industrial settings.
• Laser marks of size, tolerance, and standards.

All these characteristics contribute towards the fact that plug gauges can be continuously used in arduous production environments.

Technological Advancements in Plug Gauges

Plug gauges have also developed with the advancement in manufacturing technology. Among the developments that can be highlighted are:

• Carbide Tipped Plug Gauges that have an increased life when used in high volume production.
• Ergonomic Designs to enhance better handling and less operator fatigue.
• Special purpose Plug Gauges to fit special thread profiles and tolerances.
• Integration to Quality Systems to trace and meet the ISO and industry requirements.

These developments improve the efficiency of inspection and retain conventional reliability.

Applications of Plug Gauges across Manufacturing Industries

Plug Gauges used in Manufacturing of Threaded Components are popularly utilized in many industries such as:

• Automotive Manufacturing Plug gauges are applied in the inspection of threaded components in engine blocks, transmission housings, brake components, and suspension assemblies to ensure proper fit and dependable operation under high stress.
• Aerospace Industry Plug gauges are utilized in aerospace manufacturing to check precision-threaded components of structural assemblies and hydraulic systems where accuracy is critical to safety, durability, and mission functionality.
• Oil & Gas Equipment Plug gauges are necessary for inspecting oil and gas equipment to ensure the integrity of threaded couplings, valves, and pressure fittings, preventing leakages and ensuring safe operation under extreme pressure.
• Heavy Engineering and Machinery Plug gauges provide correct threading in shafts, housings, and mechanical assemblies, ensuring strong construction and stability in demanding industrial conditions.
• Electrical & Electronics Plug gauges are used in electrical and electronics manufacturing for quality control of threaded enclosures and connector components, guaranteeing proper assembly and safe electrical connections.

Benefits of Using Plug Gauges in Manufacturing

The application of plug gauges of threaded components has several benefits:

• Quick and easy inspection without complicated implementation.
• Less reliance on the expertise of an interpreter of measurements.
• Stable and consistent inspection outcomes.
• Enhanced efficiency in production and less down-time.
• Adherence to global quality and safety standards.

These advantages render plug gauges an essential component of the contemporary quality control in manufacturing

Maintenance and Calibration Importance of Plug Gauges for Manufacturing

Plug gauges should be calibrated and stored properly to ensure accuracy. Regular calibration prevents wear or damage from influencing inspection results. Correct handling, cleaning, and storage extend the life of gauges and maintain measurement reliability.

Conclusion

Plug Gauges for Manufacturing of Threaded Components in India are fundamental tools that support precision, quality, and efficiency in industrial production. They guarantee proper internal thread checking, minimize defects, and ensure quality assembly in compliance with industry standards. With constant innovation in materials and design, plug gauges remain reliable and indispensable for dimensional integrity in threaded component manufacturing. Systemgauges & Tools India Pvt. Ltd continues to deliver dependable plug gauge solutions that uphold dimensional accuracy and quality in manufacturing.
